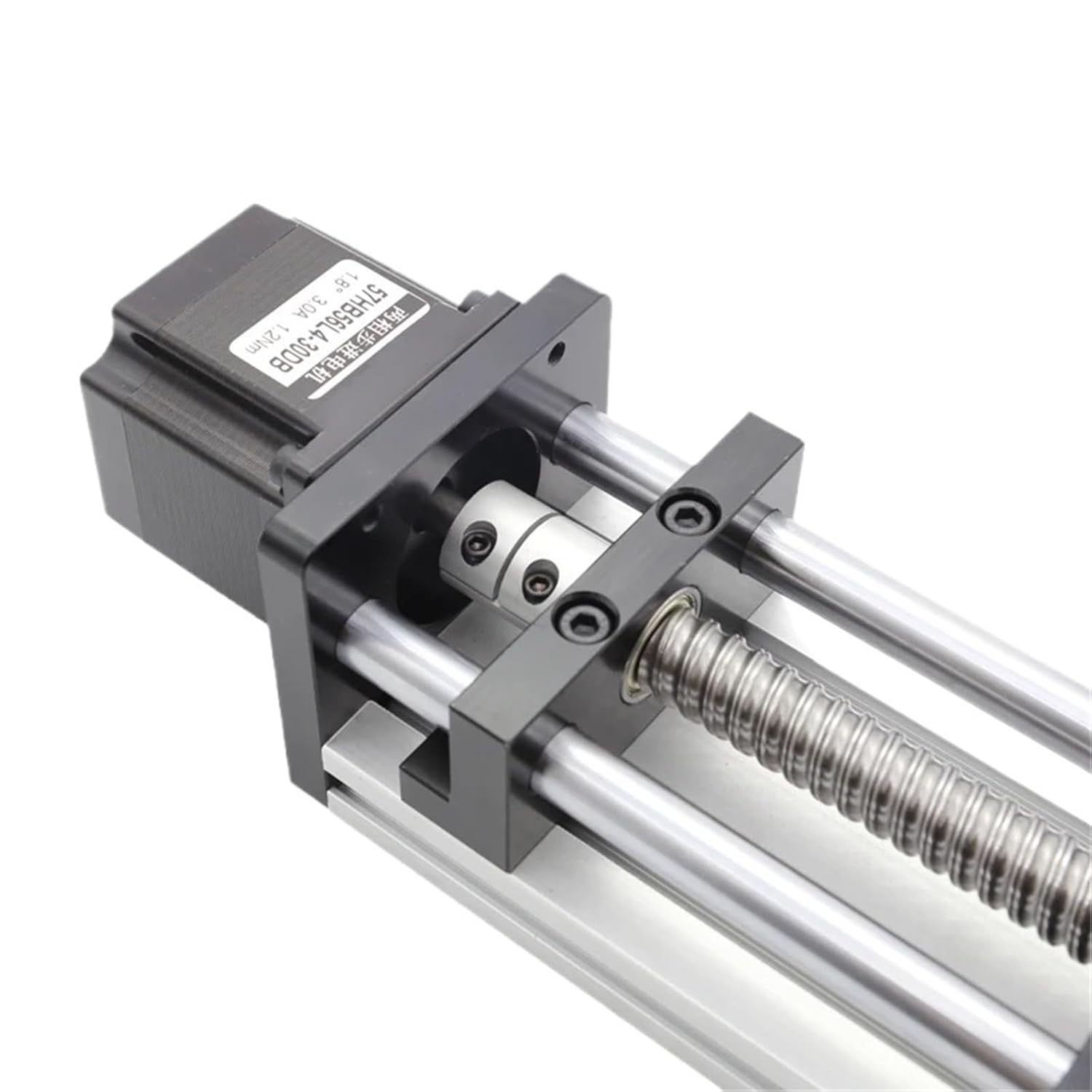

Woodworking Ball Screw Linear Guide Motion Rail Slide CNC Manual Linear Shaft Actuator Module Table Stroke Travel Engraving Tool(with Motor only,900mm Stroke)
Product details
| Management number | 211205396 | Release Date | 2026/04/04 | List Price | $318.32 | Model Number | 211205396 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Linear Motion Guide ActuatorsPackage include:Kit:Actuator * 157 Stepper Motor(Nema23 1.2N) * 1DM542 Driver * 1Power Supply * 1Controller * 1 Limit Switch * 2With motor only :Actuator * 157 Stepper Motor(Nema23 1.2N) * 1SpecificationScrew Type: 1605/1610/1204(default 1605 specification)Horizontal load: 20KGVertical load: 10KGPositioning accuracy: 0.03mm/100mmModule weight: 1610G+460G/100mmNumber of phases: two-phase hybridStep angle: 1.8°Phase current: 3AStatic : 1.2NmWiring method: red and green to A+A-,Yellow and blue connected to B+B-Input voltage: 220VACOutput voltage: 24VDCOutput power: 120W
- Linear Motion Guide Actuators
- High-Temperature Material:Constructed with aluminum-magnesium alloy, to high temperatures.
- Diy Linear Actuator|Open Axis|Precision Ball Screw:Features a smooth, low-noise precision ball screw for accurate positioning.
- Complete Kit:Comes with a 57 stepper motor, DM542 driver, intelligent controller, and limit switches.
- High Load Capacity:Supports up to 20KG horizontal and 10KG vertical loads, ideal for heavy-duty applications.
- Easy Installation:Removable nuts on the sides and back for effortless installation of limit switches.
| Item Weight | 1.76 ounces |
|---|---|
| Manufacturer | EDRIWYIM |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
