USR-W630S RS232 RS485 Serial to Wi fi and Ethernet Converter Dual-Band Dual Ethernet Port Wi Fi5 Serial Server Qualcomm Version (Full Kit)

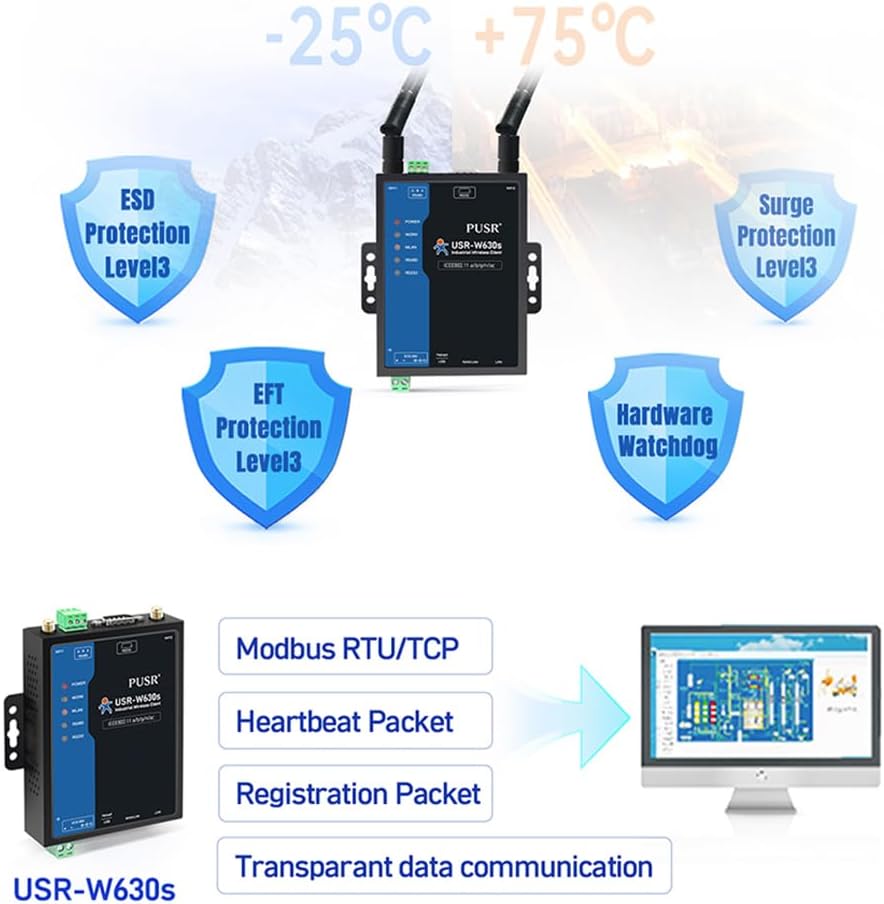

PUSR USR-W630S RS232 RS485 Serial to Wi fi and Ethernet Converter Dual-Band Dual Ethernet Port Wi Fi5 Serial Server Dual Band Wireless Client USR-W630s is an industrial wire less client with high performance Wi Fi, supporting two bands of 2.4GHz and 5GHz, supporting AP/STA/AP+STA/bridge mode. This device adopts Qualcomm's processor, with a high main frequency of up to 650MHz and integrated 1G DDR storage, capable of quickly and efficiently processing various functions of the product. The product integrates 2 4G & 5 8G Wi Fi, with a transmission rate of up to 1267Mbps, and also integrates 2*RJ45 ports(1WAN/LAN+1LAN) and 2 serial ports (1 RS232+1 485), enabling data transmission between serial ports, Ethernet ports, and Wi Fi. Rich Produet Features Heartbeat Packet Function: Remote server can detect abnormal disconnection from the client using this feature. Registration Packet Funciton: The server can identify different clients by using registration packets. Industrial-Grade Design, High Reliability EFT Protection: Level 3. Protect device against damage caused by instantaneous current interference in circuit, such as light ning stroke, power switch, etc. ESD Protection: Level 3. Prevent electrostatic damage equipment, such as dust electrostatic, electric arc environment etc. Surge Protection: Level 3. Protect devices from voltage spikessuch as light ning stroke, power switch, etc. Watchdog: Hardware & software dual watchdog to ensure stable operation without downtime. Wide Operation Temperature:-25°C~+75°C Metal housing: IP30 protection.

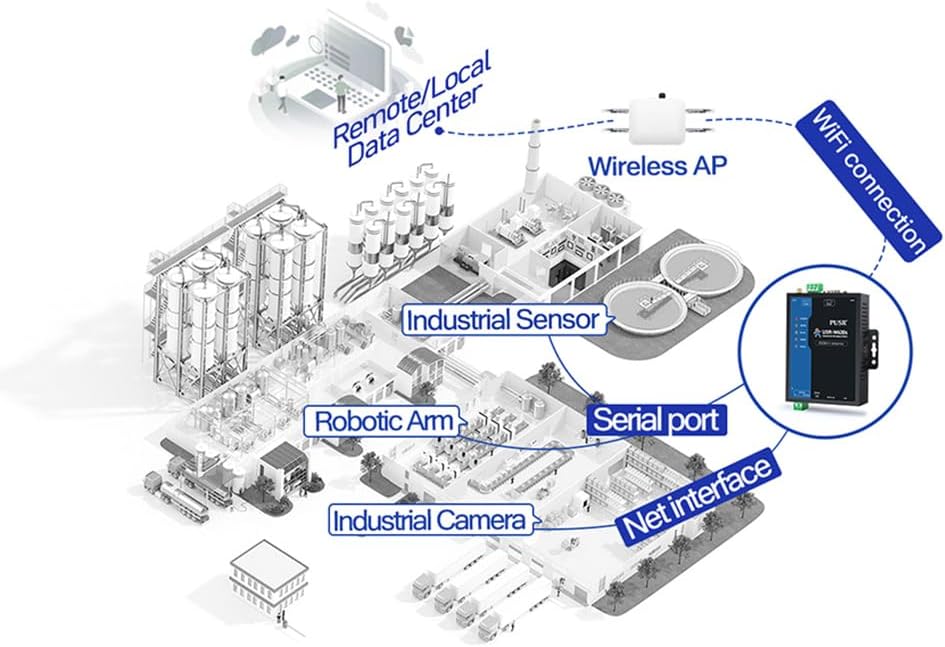

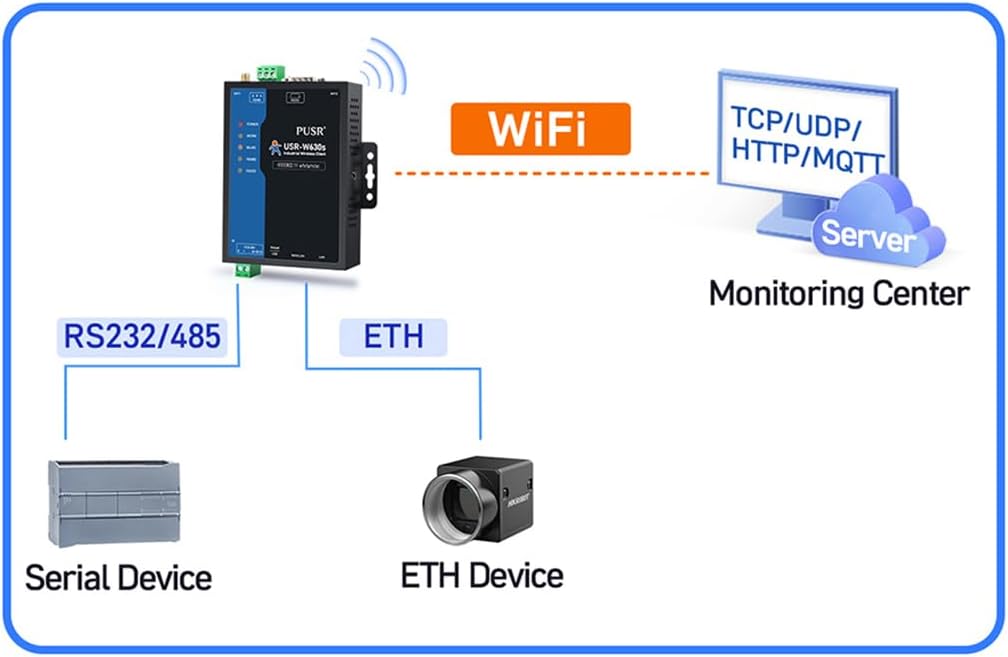

• Serial/Ethernet to Wi fi Converter: With the help of USR-W630s, you can achieve data transmission between serial port devices, net work port devices, and Wi Fi devices, as well as remotely monitor the operational status of field devices.
• Qualcomm Chip, Dual Band Wi Fi: Powerful and reliable processor to ensure the stable. 5 8G & 2 4G Wi Fi, offering the advantages of strong anti-interference capability, high speed, and wide coverage.In an open environment, the coverage range can reach up to 400 meters.
• Multiple Working Modes: AP, STA,AP+STA, AP+LAN, AP+WAN, STA+LAN, STA+WAN. And this device supports repeater and bridge mode. And then data communication between the serial port device/LAN device and the remote server/LAN server can be realized.

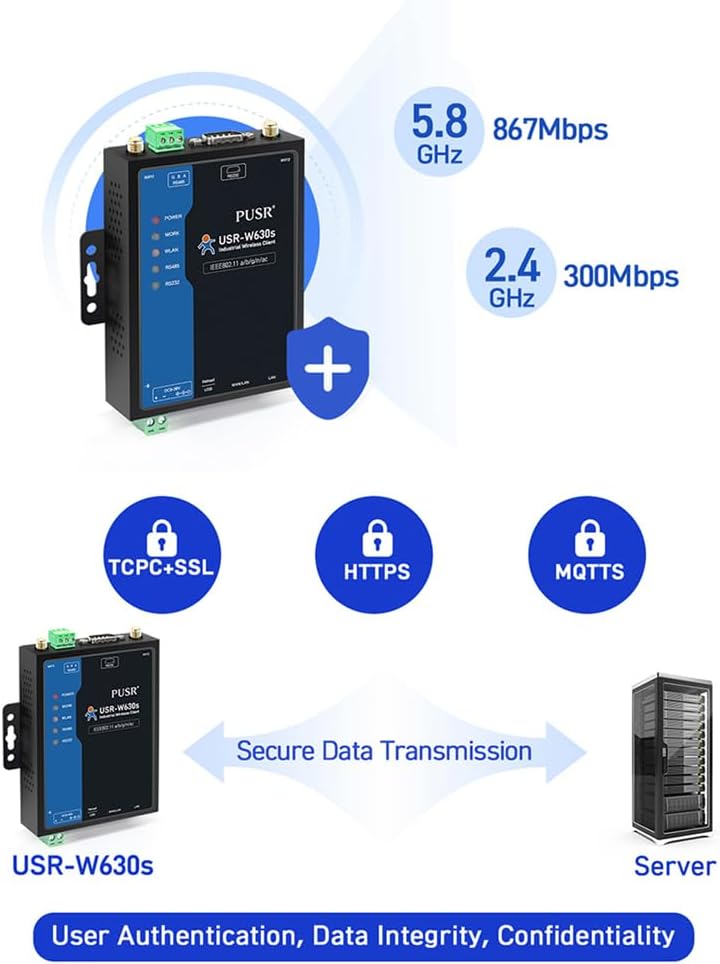

• Data Transmission Encryption, More Security: Supports SSL/TLS encryption in TCP client, HTTP client and MQTT operation modes. Supports two-way certificates authentication.
• Modbus Gateway: Modbus RTU/TCP protocol conversation, Modbus multi-host polling. Support Transparant MQTT/TCP/UDP/HTTP data communication.
