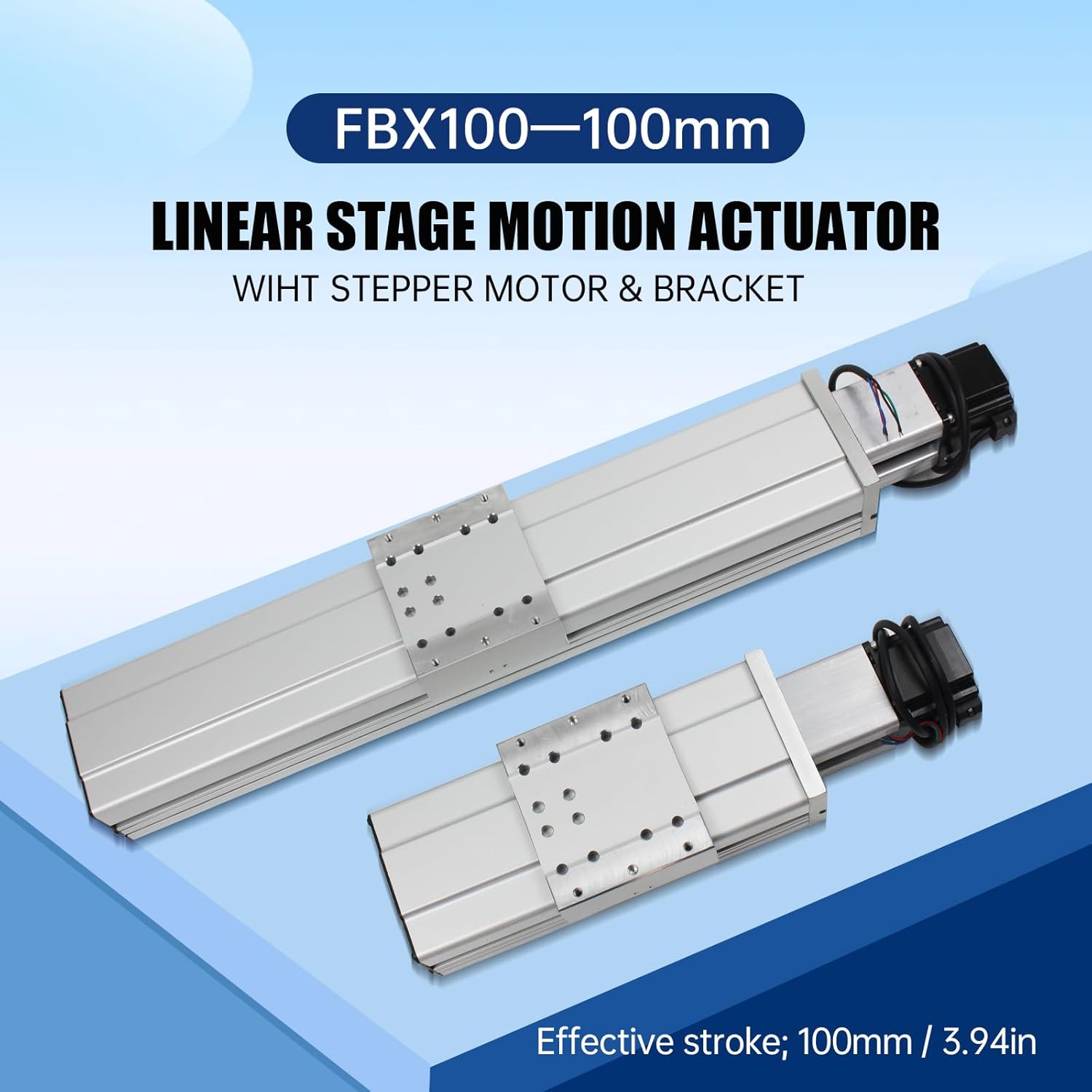

RATTMMOTOR FBX100-100mm Heavy CNC Linear Actuator Kit, Aluminum Alloy Fully Enclosed Linear Motion Stage Actuator Double Linear Slide Rail X Y Z Axis Linear Slide Table Linear Motion Guide for CNC
$215.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by elize.co.in
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$215.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by elize.co.in
Free 30-day returns Details
Product details
| Management number | 211204637 | Release Date | 2026/04/04 | List Price | $86.00 | Model Number | 211204637 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Product Components】 Nema23 motor + motor bracket + coupling + motor flange + 1605 ball screw + double track guide rail and slide block + slide table + base + stable support seat + bearing seat + metal cover plate.
- 【 Product specification introduction】 Ballscrew specification: 1605; running speed: slide empty running speed is 60mm-70mm / s; wire rod accuracy: positioning accuracy 0.03-0.05mm; product material: aluminum alloy + bearing steel; maximum load: horizontal 25 KG, bearing 10 KG (although this heavy slide load capacity is not high, but high accuracy, if the accuracy is required, this slide can be selected).
- 【 MGN 15 linear guide + 4 MGN 15 linear guide slide】 15mm Double track linear rail, bearing steel material. The guide rail surface is smooth, with low friction and low sliding noise. Adopt the Gothic four-point contact design, can withstand the load in all directions, with strong rigidity, high precision characteristics, higher load and more stable bearing. The slider is equipped with dust baffle and steel retainer, and the slider has interchangeability when the accuracy allows.
- 【 High performance hybrid stepper motor】 Motor size: 57 * 57mm * 56mm, torque: 1.26N.m; current: 3A; shaft: single out shaft; voltage: 12-36V (typical value 24V); control mode: pulse control; output speed: 1000 RPM (within 600 RPM). Balck is A+, Green is A-, Red is B+, Blue is B-
- 【 Advantages】 Stable load-bearing bearing: upgraded stable bearing, stable wire rod, make the module operation more stable and smooth, higher accuracy. Fully enclosed design: high quality aluminum alloy material, effective dust proof, oxidation treatment slide table is not easy to rust.
| Item Weight | 11.33 pounds |
|---|---|
| Manufacturer | RATTMMOTOR |
| Package Dimensions | 17.44 x 6.69 x 5.31 inches |
