Henkion OTDR Fiber Optic Tester 1310/1550nm 28/26dB Auto/Expert OTDR Fiber Test,Event Map LS OPM OLS Digital Multimeter SFP Module WiFi Cable Test Network Tools 8 Adapters 8" IPS Touch Screen

★★★★★ 4.8 87 reviews

$475.89
Price when purchased online
Free shipping Free 30-day returns

Sold and shipped by elize.co.in
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$475.89
Price when purchased online
Free shipping Free 30-day returns

How do you want your item?
You get 30 days free! Choose a plan at checkout.
Shipping
Arrives Apr 17
Free
Pickup
Check nearby
Delivery
Not available

Sold and shipped by elize.co.in
Free 30-day returns Details

Product details

Management number 211306760 Release Date 2026/04/04 List Price $190.36 Model Number 211306760
Category
  • 【RSO-85 Intelligent OTDR measurement】OTDR fiber optical tester provides wavelength of 1310/1550nm and dynamic range of 28/26dB,the max test distance 150km.For auto range mode:can one click start test,only select the wavelength and test time,quickly perform the test.For parameters setting mode:Testing after setting parameters distance scope,pulse width,duration of measurement etc.Curvest/ map are displayed simultaneously.Pls note:This mode only can detect optical signal,doesn't support live test.
  • 【Curve Analysis & Shortest EDZ ADZ & Data Storage】The OTDR fiber tester can analyzes the curve automatially,touch screen zoom or move curves operation.The tested results are displayed in the form of a list.Event list clearly reflects the type of event,distance,loss,decay,reflection. Shortest event dead zone (1.6m) and attenuation dead zone (8m). Support automatic or manual save the most of 4 traces simultaneousiy,creat trace reports to the storage path.SOR standard file format PDF/EXCEL.
  • 【OPM LS OLS Tools & WIFI】8 inch IPS touch screen OTDR tester,1920x1200 resolution. Optical power meter--It is used for optical power testing and Fiber link loss relative measurement. LS--Wavelength: 1310/1550nm. Optical loss test--used to test the insertion loss of optical passive devices. Built-in Wifi, creat wifi hotspot, wifi analyze.

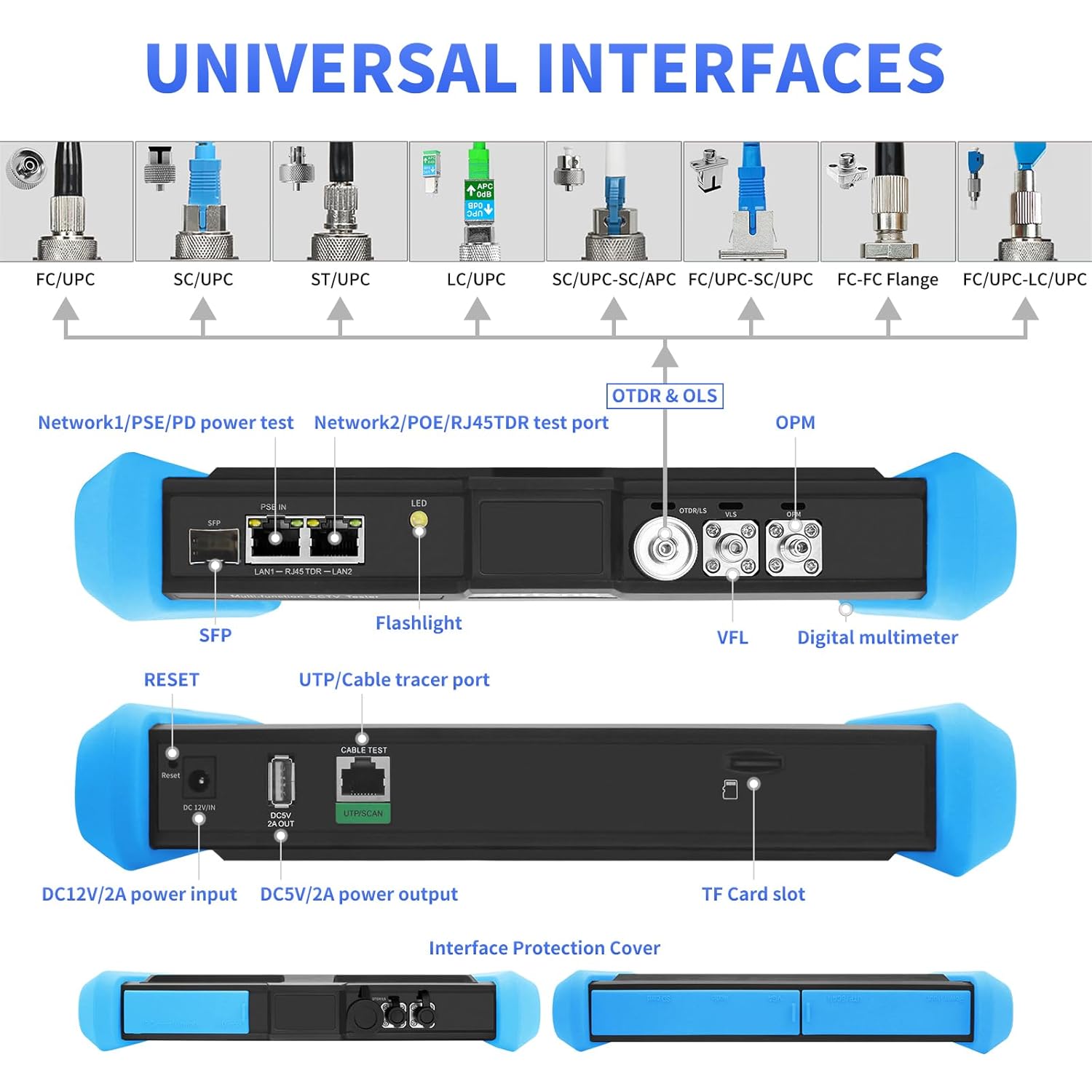

  • 【Event map&Connectors&DMM】One key automatic test,and the information such as the length of the optical fiber link to be measured,the type of the joint and the position of the breakpoint are displayed graphically.OTDR fiber tester with 8 styles of interchangeable connectors UPC/FC,SC,LC,ST.1x FC to FC,1x FC to SC,1x SC to SC,1x FC to LC. Digital Multimeter--Measurement tool for AC and DC voltage, AC and DC current, resistance,capacitance, data hold, relative measurement, continuity testing.
  • 【Cable Tester & SFP & Network tool】OTDR tester also equipped with UTP cable test, cable length, RJ45 TDR cable test. With cable tracer,can quickly find out the BNC cable,network cable and telephone cable from the mess cables.Non-contact voltage detection, PD power test. 1× SFP optical fiber module interface, support insert Gigabit SFP optical fiber module. Network test tools trace route,link monitor,DHCP server,port flashing,ping test.
Color Bule
Model RSO-85
Brand Name Henkion
Style Name RSO-85 1310/1550nm 28/26dB
Item Weight 2.2 Pounds
Manufacturer Henkion
Power Source Battery Powered
Measurement Type Electrical/Optical Units
Specification Met Sor, Ce, Rohs
Included Components 8 Styles of Fiber Adapters
