Eujgoov 1200W Grid Tie Inverter, Solar Power Inverter with MPPT, WiFi Monitoring, Anti Backflow for Home PV (120V)

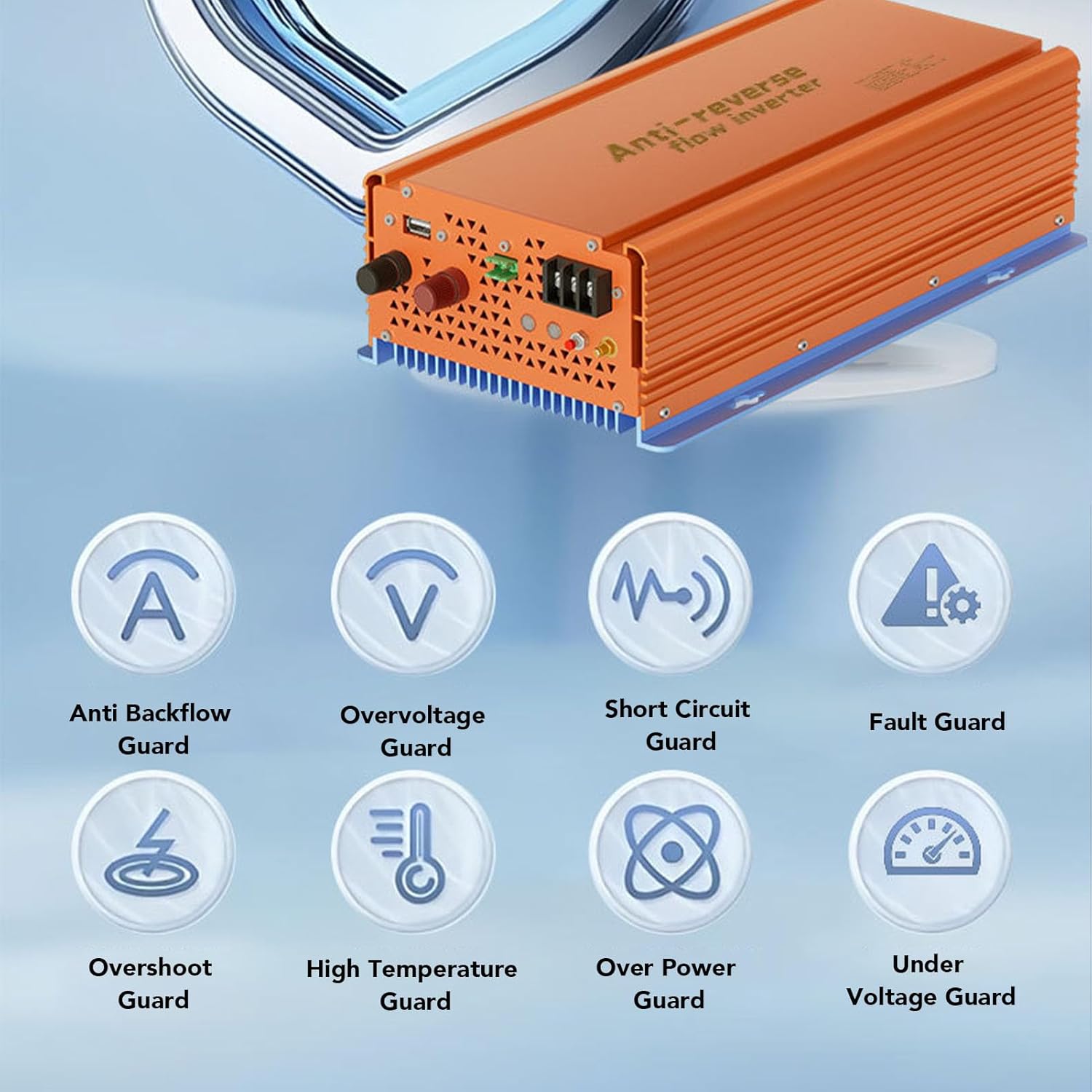

Specification: Item Type: Anti Reverse Inverter Material: Aluminum Alloy Input Data (DC, PV) DC Input Branches: 1 set MPPT Voltage Range: 22V-50V Working Voltage Range: 20V-50V Maximum Input Voltage: 50V Startup Voltage: 20V Maximum Input Power: 1250W Maximum Input Current: 30A Output Data (AC) Rated Output Power: 1200W Maximum Output Power: 1200W Default Output Frequency Range: 48-62 Power Factor: >0.98% Total Harmonic Distortion: THD Working Status: Monitoring, Mobile APP ​ Efficiency: 95% Nominal MPPT Efficiency: 99.5% Night Power Consumption: Mechanical Data: Working Temperature Range: -40℃-65℃ Storage Temperature Range: -40℃-85℃ AC Bus Cable Maximum Current: 20A Water Proof Level: IP22 Cooling Method: Natural Cooling, Fan Assistance Other Features: Comm: WiFi (​ Monitoring) Transformer Design: HF Transformer Integrated Grounding: Device grounding provided by PE in AC cable; no additional grounding required Guard Functions: Island Guard, Voltage Guard, Frequency Guard, Temperature Guard, Current Guard, etc. Compliance Design: EN 1EC61000-3-2:2019+A1:2021 EN 61000-3-3:2013+A1:2019+A22021 EN 1EC55014-2:2021 EN IEC55014-2 2021 packing list: 1 x Inverter 1 x Circuit Breaker 3 x Connection Cables 1 x Antenna 3 x Connecting Terminals 1 x User Manual

• APP Remote Monitoring: The solar grid tie inverter uses for Tuya APP system, which supports remote upgrades and fault diagnosis. It can output annual and daily power generation based on its own household electricity usage, which can be seen
• MPPT Function: With wide tracking dynamic range, which can efficiently respond to various lighting conditions and load changes. It accurately tracks the maximum power point (MPPT), locks the maximum power point, and improves power generation efficiency. The MPPT tracking efficiency can be up to 99%

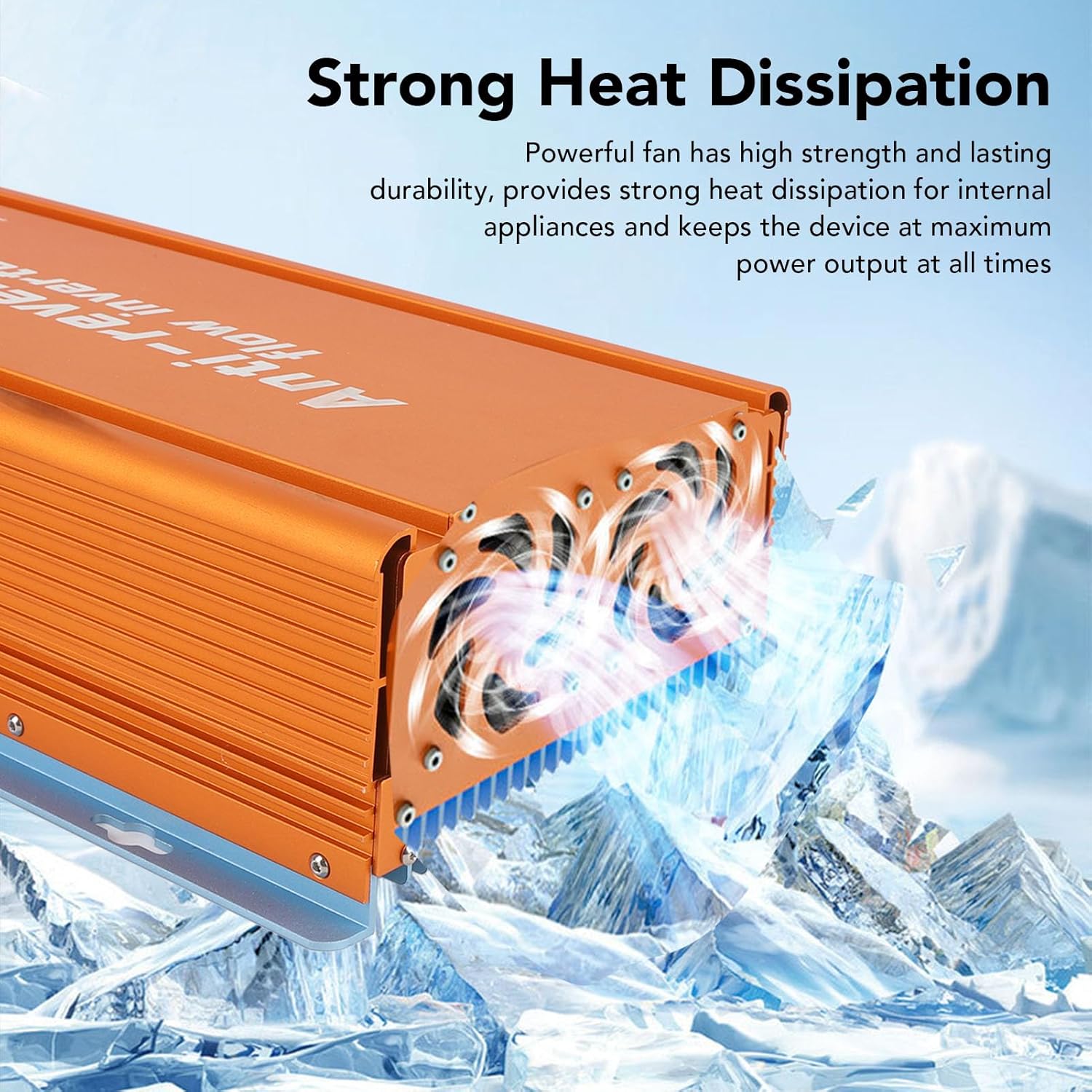

• Heat Dissipation: The inverter adopts an aluminum alloy shell, providing fast heat dissipation. Adjustments are made in software control to ensure the service life of internal electrolyte capacitors and other efficiency components, and to improve conversion efficiency
• Anti Backflow Grid Tie Inverter: A type of converter applied in PV power generation system. It adopts intelligent control and improved technology, which can maintain the normal work of the PV power generation system in the case of low solar panel voltage or excessive solar panel current
• Anti Backflow Function: By setting various working modes through phone interface, the anti backflow design can be set to grid connection or reverse termination when connected to the power grid, mainly for situations where does not consume electricity, achieving self load electricity and energy storage for home
