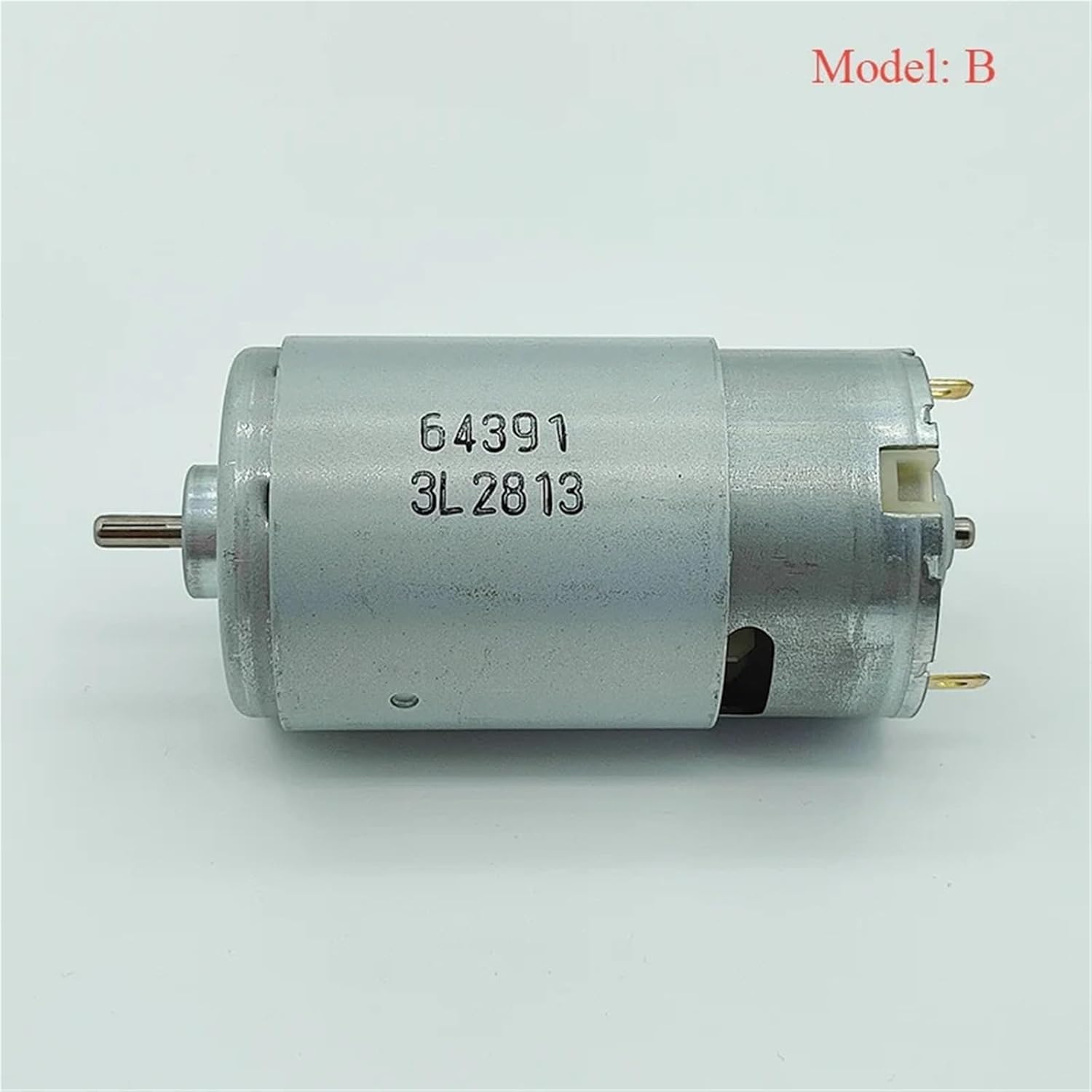

1pc RS 570 Mini 36mm Motor DC9.6V 12V 18V 24V High Speed Power Large for Electric Drill Garden Tool Polishing Machine(Model B 19.6V)

MotorsSpecification:Model: A (Rated voltage: 9.6V)1.Motor diameter: 35.7 MM (with ring is 38MM)2.Motor length: 65MM3.Motor shaft diameter: 3.17MM4.Output shaft length: 11MM (from panel is 15.5MM)5.Motor weight: 250g6.Rated Voltage: 9.6V7.Voltage range: 6V-12V8.Maximum load power: 198W9.Test data:Voltage: 6.0V No-load current: 3.11A No-load speed: 14200RPMVoltage: 9.0V No-load current: 3.55A No-load speed: 21300RPMVoltage: 9.6V No-load current: 3.65A No-load speed: 22800RPMVoltage: 12V No-load current: 3.73A No-load speed: 28500RPM=============================================================================Model: B (Rated voltage: 19.6V)1.Motor diameter: 35.9MM (with ring is 37.2MM)2.Motor length: 65MM3.Motor shaft diameter: 3.2MM (embossed shaft)4.Output shaft length: 9.2MM (from panel is 13.6MM)5.Motor weight: 258g6.Rated Voltage: 19.6V7.Voltage range : 12V-24V8.Test data:Voltage: DC12.0V No-load current: 0.85A No-load speed: 12200 RPMVoltage: DC14.4V No-load current: 0.85A No-load speed: 17000 RPMVoltage: DC19.6V No-load current: 1.20A No-load speed: 20000 RPMVoltage: DC24.0V No-load current: 1.40A No-load speed: 24500 RPM=============================================================================Model: C(Rated voltage: 24V)1.Motor diameter: 35.9MM (with ring is 37.2MM)2.Motor length: 65MM3.Motor shaft diameter: 3.2MM (embossed shaft)4.Output shaft length: 9.2MM (from panel is 13.6MM)5.Motor weight: 263g6.Rated Voltage: 24V7.Voltage range : 12V-24V8.Test data:Voltage: DC12V No-load current: 0.80A No-load speed: 10000 RPMVoltage: DC14.4V No-load current: 0.80A No-load speed: 12200 RPMVoltage: DC18V No-load current: 0.88A No-load speed: 15400 RPMVoltage: DC24V No-load current: 1.10A No-load speed: 20000 RPM===========================================
